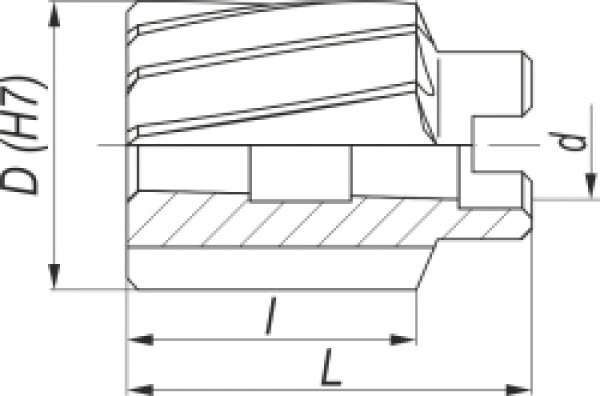

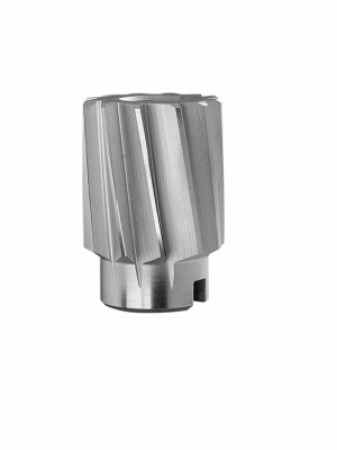

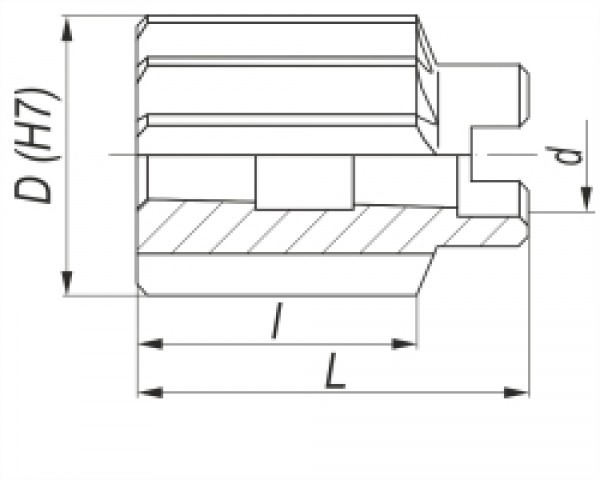

DIN 219-A,B
D |
d |
I |
L |
Z |
DIN 219-A |
DIN 219-B |
| 30 | 13 | 32 | 45 | 10 | -200-070 | -210-070 |
| 32 | 16 | 36 | 50 | 12 | -200-075 | -210-075 |
| 34 | 16 | 36 | 50 | 12 | -200-080 | -210-080 |
| 35 | 16 | 36 | 50 | 12 | -200-085 | -210-085 |
| 36 | 19 | 40 | 56 | 12 | -200-090 | -210-090 |
| 38 | 19 | 40 | 56 | 12 | -200-095 | -210-095 |
| 39 | 19 | 40 | 56 | 12 | -200-097 | -210-097 |
| 40 | 19 | 40 | 56 | 12 | -200-100 | -210-100 |
| 42 | 19 | 40 | 56 | 12 | -200-105 | -210-105 |
| 44 | 22 | 45 | 63 | 12 | -200-108 | -210-108 |
| 45 | 22 | 45 | 63 | 12 | -200-110 | -210-110 |
| 46 | 22 | 45 | 63 | 12 | -200-115 | -210-115 |
| 48 | 22 | 45 | 63 | 12 | -200-120 | -210-120 |
| 50 | 22 | 45 | 63 | 12 | -200-125 | -210-125 |
| 52 | 27 | 50 | 71 | 12 | -200-130 | -210-130 |
| 55 | 27 | 50 | 71 | 12 | -200-135 | -210-135 |
| 58 | 27 | 50 | 71 | 12 | -200-140 | -210-140 |
| 60 | 27 | 50 | 71 | 12 | -200-145 | -210-145 |
| 62 | 32 | 56 | 80 | 14 | -200-150 | -210-150 |
| 65 | 32 | 56 | 80 | 14 | -200-155 | -210-155 |
| 70 | 32 | 56 | 80 | 14 | -200-160 | -210-160 |
| 72 | 40 | 63 | 90 | 14 | -200-165 | -210-165 |
| 75 | 40 | 63 | 90 | 14 | -200-170 | -210-170 |
| 80 | 40 | 63 | 90 | 14 | -200-175 | -210-175 |
| 85 | 40 | 63 | 90 | 14 | -200-180 | -210-180 |
| 90 | 50 | 71 | 100 | 16 | -200-185 | -210-185 |
| 95 | 50 | 71 | 100 | 16 | -200-190 | -210-190 |
| 100 | 50 | 71 | 100 | 16 | -200-195 | -210-195 |
| ! Po specijalnim porudžbinama ravimo alat i drugih dimenzija |
