Glodala/Frezeri
.

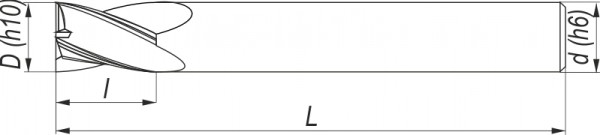

DIN 6527 K
| → DIN 6527 K | |||||||||||
|
D |
d |
L |
2-spirale |
3-spirale |
4-spirale |
||||||
| I | index 0641-512- |
index TiAIN |
I |
index |
index TiAIN |
I |
index |
index TiAIN |
|||
| 3 | 6 | 50 | 4 | -900-010 | -910-010 | 4 | -900-110 | -910-110 | 5 | -900-210 | -910-210 |
| 4 | 6 | 54 | 5 | -900-020 | -910-020 | 5 | -900-120 | -910-120 | 8 | -900-220 | -910-220 |
| 5 | 6 | 54 | 6 | -900-030 | -910-030 | 6 | -900-130 | -910-130 | 9 | -900-230 | -910-230 |
| 6 | 6 | 54 | 7 | -900-035 | -910-035 | 7 | -900-135 | -910-135 | 10 | -900-235 | -910-235 |
| 7 | 8 | 58 | 8 | -900-040 | -910-040 | 8 | -900-140 | -910-140 | 11 | -900-240 | -910-240 |
| 8 | 8 | 58 | 9 | -900-045 | -910-045 | 9 | -900-145 | -910-145 | 12 | -900-245 | -910-245 |
| 9 | 10 | 66 | 10 | -900-050 | -910-050 | 10 | -900-150 | -910-150 | 13 | -900-250 | -910-250 |
| 10 | 10 | 66 | 11 | -900-055 | -910-055 | 11 | -900-155 | -910-155 | 14 | -900-255 | -910-255 |
| 12 | 12 | 73 | 12 | -900-060 | -910-060 | 12 | -900-160 | -910-160 | 16 | -900-260 | -910-260 |
| 14 | 14 | 75 | 14 | -900-065 | -910-065 | 14 | -900-165 | -910-165 | 18 | -900-265 | -910-265 |
| 16 | 16 | 82 | 16 | -900-070 | -910-070 | 16 | -900-170 | -910-170 | 22 | -900-270 | -910-270 |
| 18 | 18 | 84 | 18 | -900-075 | -910-075 | 18 | -900-175 | -910-175 | 24 | -900-275 | -910-275 |
| 20 | 20 | 92 | 20 | -900-080 | -910-080 | 20 | -900-180 | -910-180 | 26 | -900-280 | -910-280 |
| ! Po specijalnim porudžbinama ravimo alat i drugih dimenzija |
